Inclined screw auger conveyor for food
Screw conveyor description
♦ Screw conveyor, also called spiral conveyer,auger conveyor,screw feeder,vibrating conveyor,flexible screw conveyor ,etc.
♦ Screw conveyor is designed to transport series materials from one place to another.. Combined with the vibrating screen of our company, it can do material situation tracing, also can be used separately.
♦ This kind screw conveyor can be used to transport series materials of powder, granular or small block in industry, food and environment protection industries, medicine etc.
Screw conveyor technical parameter
model Model | screw diameter (mm) | Screw pitch (mm) | rotational speed of screw (r/min) | convey measure (m3/h) | motor power (kw) | max dip angle (o ) |
LS-100 | 100 | 100 | 140 125 112 100 90 80 71 63 50 40 | 2.2 | 2.2~18.5 | ≤20 |
LS-125 | 125 | 125 | 4.0 | |||
LS-160 | 160 | 160 | 8 | |||
LS-200 | 200 | 200 | 11 | |||
LS-250 | 250 | 250 | 22 | |||
LS-315 | 315 | 315 | 34 | |||
LS-400 | 400 | 355 | 64 | |||
LS-500 | 500 | 400 | 95 | |||
LS-630 | 630 | 450 | 150 | |||
LS-800 | 800 | 500 | 210 |
Specification only for your reference, size variable as per customer's request.
If you are interested in our products but dont know which kind of machine are suitable for you , just tell us the following information then my engineer would choose a suitable machine for you according to your working process .
1. What is the height or length of the conveyor?
2. What is the raw material you wnat to conveyor?and what is the density of your material?
3. What is your production capacity one hour?
4. What's material for the machine?All 304 stainless steel or contact materials part is 304 stainless steel or all carbon steel?
5.Do you want to use FOB price or CNF price?if CNF,please tell me your destination port.
6.Do you have other requests?
Depending on your requirements, meet your custom, Specially designed to meet special needs.
Have any needs, please contact us!
Screw conveyor features
1. Spiral conveyer separates and transports material spirally. It is light because of no underwater bearing which makes its maintenance more convenient.
2. Spiral conveyer adoption of new decelerator makes the structure very compact, the operation smooth and the installation more convenient.
3. Spiral conveyer using of the flexible bars in tube, which are wear-resisting, makes the separator work with lower noise, and replace of these bars easily.
4. Spiral conveyer whole set enjoys simple installation and easy operation.
Screw conveyor application
Auger conveyor has been widely used in various departments of the national economy, such as building material, metallurgy, chemical industry, electric power, coal, machinery, light industry, food and the food industry, is suitable for conveying powder, granulated and small lump materials, such as cement, coal, grain, chemical fertilizer, ash, sand, coke, etc. Should not be transporting perishable materials, big viscosity, easy to agglomerate, LS screw conveyor working environment temperature is usually - 20 ~ 40 ℃, the temperature of the conveying material is commonly - 20 ~ 80 ℃, the LS screw conveyor is suitable for level and layout of the small Angle, inclination Angle with no more than 15 ° advisable, such as Angle is too large, please choose GX series screw conveyor, or contact our.
Screw conveyor product pictures
Screw conveyor part detail
Screw conveyor working with vibrating screen
Screw conveyor working with filling machine
Screw conveyor working with other machine
Packing:Outer packing is plywood case, which is up to the international standard. Inner packing is moisture-proof and water-proof membrane. All of packages are wrapped by 0.5mm steel belt to further strengthen, which can ensure machine safe during shipping.
Shipment:10-15 working days after receiving your payment.
All produts purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
a, Before sending the machine, we will test and adjust, so you can use directly when you get it.
b, Operation video & instruction will be sent to clients, to help them use the machines better.
Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
a, Any problems occur while using, professional advice will be offered.
b, All kinds of frequently used parts are supplied all the year round.
c, 24 hours hot line +86-18637309828
Xinxiang Sanyuantang Machinery Co.,Ltd, ISO9001 certified enterprise.Our company is located in XINXIANG CITY HENAN PROVINCE CHINA, We are one of leading manufacturer who specialize

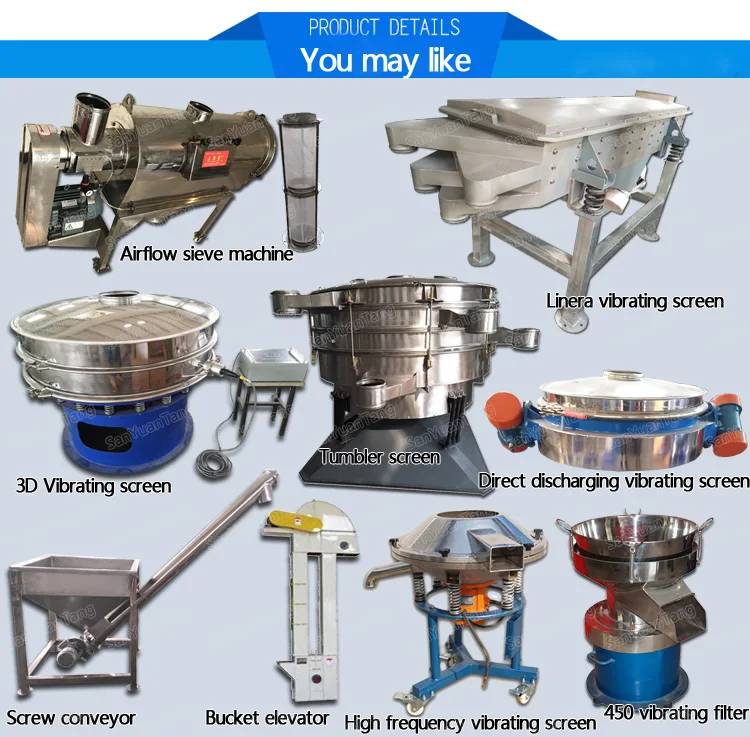

At present, the main range of products include kinds of series of Rotary Vibrating Sieve/Screen, Linear Vibrating Screen/Sieve, Tumbler Screen Machine, Lab Test Sieve Machine, 450 Filter Sieve Machine, Ultrasonic Vibrating Sieve/Screen,High Frequency Vibrating Sieve/Screen, Drum Sieve,Screw Conveyor, Flexiable Screw Conveyor, Bucket Elevator, Vertical Conveyor ,Honey Processing Machine,etc.
